Product Details:
|
| Product Name: | JIS Frame Type Turnbuckles | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Galvanized, Self Color | Size: | M6 - M24 |
| Weight: | 0.116 - 3.8 Kg | Packing: | Cartong + Pallet |
| High Light: | galvanised turnbuckle M6,galvanised turnbuckle M24,JIS Frame steel cable turnbuckle |
||

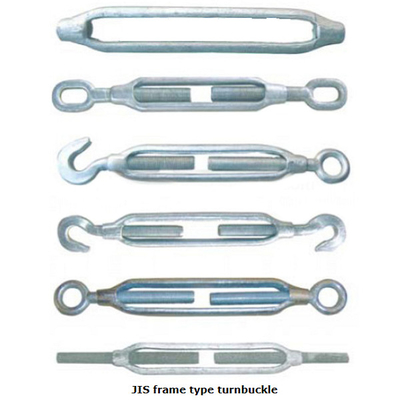

JIS Frame Type Turnbuckles
Turnbuckle is a kind of hardware, which is used to adjust the connection length of connetion objects.It is used to taut wire rope and adjust the elasitc. The type of OO model is used in the occasion that less often been removed. CC type often used to been removed, and CO type used for the occasion that one side is often been removed while the other side is not. And you should make sure that at least 25% of the length of screw has enter into the body of JIS frame type turnbuckles when you use it.
Product details:
1. Item: JIS frame type turnbuckle
2. Standard: JIS type
3. Material: carbon steel, stainless steel

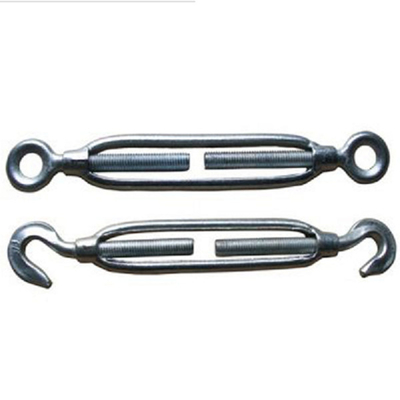

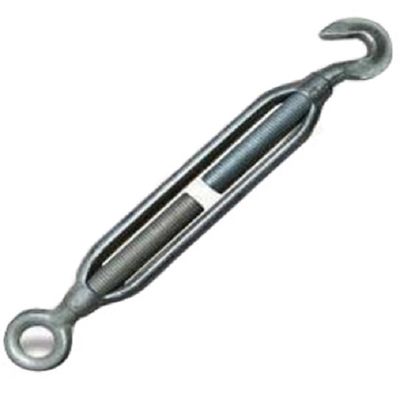

4. Type: hook&hook, eye &hook, eye&eye,
5. Technology: forged
6. Surface: hot dipped galv, electro galv, polish, self color
7. Size: 6mm-32mm
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement
Specification:
|
SIZE (mm) |
weight(kg/pc) | |||
| body | eye&eye | hook&eye | hook&hook | |
| 6 | 0.08 | 0.116 | 0.114 | 0.112 |
| 8 | 0.15 | 0.22 | 0.218 | 0.215 |
| 9 | 0.17 | 0.3 | 0.293 | 0.29 |
| 12 | 0.29 | 0.58 | 0.585 | 0.57 |
| 16 | 0.52 | 1.07 | 1.05 | 1.03 |
| 19 | 0.85 | 1.77 | 1.78 | 1.77 |
| 22 | 1.17 | 2.55 | 2.58 | 2.6 |
| 25 | 1.69 | 3.79 | 3.77 | 3.72 |
| 32 | 3.51 | 7.6 | 7.52 | 7.44 |
| 38 | 5.08 | 13.5 | 12.8 | 22 |
| 44 | 9 | — | — | 22 |
| 50 | 11.5 | — | — | 29 |
