Product Details:
|
| Product Name: | Stainless Steel Lifting Hook | Material: | Stainless Steel |
|---|---|---|---|
| Surface: | Polished | Size: | M16 - M38 |
| Packing: | Cartong + Pallet | WLL: | 0.5-3ton |
| High Light: | 0.16kg Stainless Steel Rigging Hardware,1.52kg Stainless Steel Rigging Hardware,stainless steel lifting hook M38 |
||

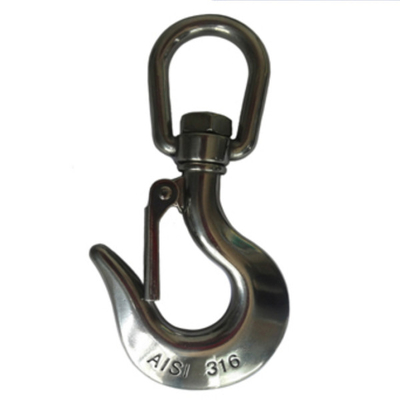

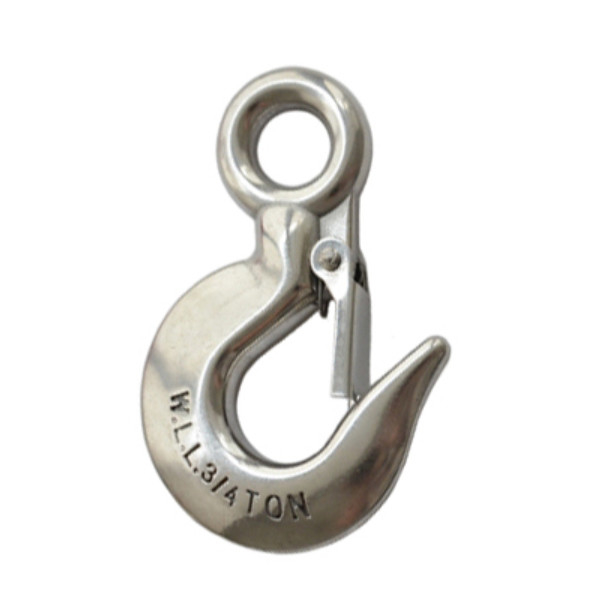

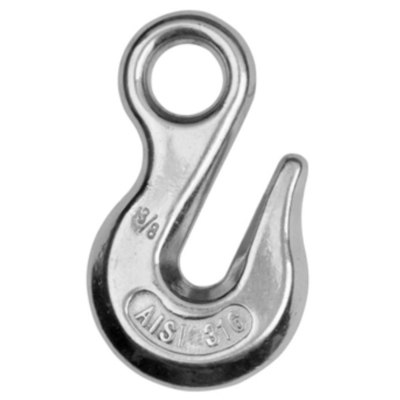

Stainless steel lifting hook is widely used with steel wire rope and chain in factories, mines, docks, warehouses, machinery processing, constraction site and so on. It has advantages of small volume, light weight and high strength. All the products have gone through overload detection, and we can provide the testing certificates.
Product Details:
1. Model: Stainless steel lifting hook
2. Material: Stainless steel
3. Usage: Lifting
4. Weight: 0.16kg-1.52kg
5. Capacity: 0.5-3ton
6. Forbidden to use overload
7. Certificates: ISO, CE, SGS,etc.
8. Packaging: Gunny bag or carton then on steel pallet
9. Special specification and marks can be made according to order quantity
Specification:
| WLL | Weight | A | B | C | D | L |
| T | kg | mm | mm | mm | mm | mm |
| 0.5 | 0.16 | 16 | 14 | 68 | 22 | 93 |
| 0.75 | 0.26 | 18 | 18 | 80 | 26 | 110 |
| 1 | 0.35 | 22 | 20 | 84 | 26 | 120 |
| 2 | 0.85 | 32 | 25 | 118 | 38 | 165 |
| 3 | 1.5 | 38 | 33 | 144 | 44 | 200 |
