7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link

7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link
7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link
7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link

Large Image :  7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Connecting Link
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

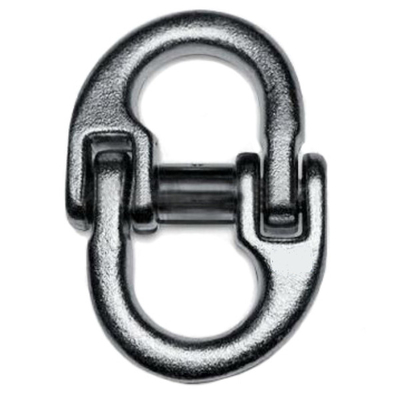

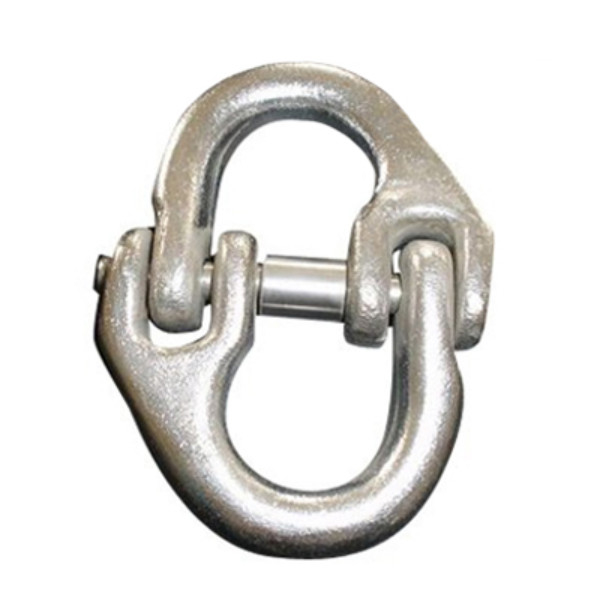

7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link

Description
Product Name: High Polished Stainless Steel Connecting Link Material: Stainless Steel
Surface: Polished Size: 7mm-32mm
Packing: Cartong + Pallet WLL: 4300lbs-90400lbs
High Light:

7mm stainless steel chain connecting links

,

32mm stainless steel chain connecting links

,

chain coupling link 90400lbs

High Polished Stainless Steel Connecting Link

High polished stainless steel connecting link is made by high polished stainless steeel with advanced international production process. It can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product Details:

1. Item: High polished stainless steel connecting link

2. Grade: G80

3. Type: European type

4. Material: stainless steel

5. Technology: Drop forged

6. Surface: High polished, Color painted

7. WLL: 4300lbs-90400lbs

8. Braking load is 4 times of working load limited

9. Usage: Lifting accessories

10. Size: 7mm-32mm

11. Special specifications and marks can be made according to customers requirement

Specification:

Size(mm) Weight(lbs) WLL(lbs) A(mm) B(mm) C(mm) D(mm) E(mm)
7 0.28 4300 0.36 1.88 1.85 0.78 0.63
8 0.33 5700 0.36 2.18 1.97 0.91 0.66
10 0.73 8800 0.45 2.53 2.5 1.03 0.85
13 1.67 15000 0.64 3.44 3.22 1.44 1.09
16 2.86 22600 0.75 4.13 3.78 1.73 1.38
20 5 35300 0.93 4.92 4.62 2.03 1.62
22 7.5 42700 1.06 5.46 5.46 2.2 2
25 11.03 59700 1.22 5.98 5.98 2.44 2.25
32 20.38 90400 1.5 7.43 7.43 3.07 2.56



7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 07mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 17mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 2



Packing & Delivery



7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 3

7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link 4
