Product Details:
|
| Product Name: | Stainless Steel Large Bow Shackle | Material: | Stainless Steel |
|---|---|---|---|
| Surface: | Polished | Size: | From 1/2 Inch To 3-1/2 Inch |
| Packing: | Cartong + Pallet | WLL: | 2 - 120 Tons |
| High Light: | 2T Stainless Steel Rigging Hardware,120T Stainless Steel Rigging Hardware,large bow shackle SGS |
||

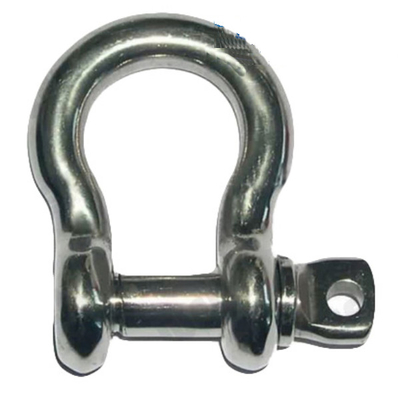

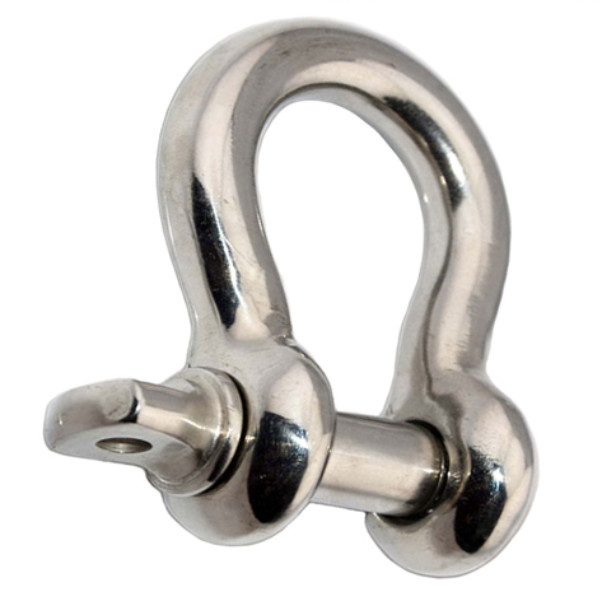

Stainless steel large bow shackles are widely used in marine equipment. Our company has specialized in producing this product for many years, so the price is very competitive. In addition, our professional sales team will provide you with the best service. Welcome to get in touch with us.
Details:
1. Model: Large Bow Shackle
2. Material: Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 1/2 inch to 3-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size | WLL | A | B | C | D | E | F | P | Weight |
| inch | tons | mm | mm | mm | mm | mm | mm | mm | kg/pc |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 71.1 | 0.36 |
| 5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 89.7 | 0.76 |
| 3/4 | 4.75 | 31.8 | 22.4 | 71.4 | 19.1 | 50.8 | 45 | 103.4 | 1.23 |
| 7/8 | 6.5 | 36.6 | 25.4 | 84.1 | 22.4 | 57.9 | 53.1 | 119.6 | 1.79 |
| 1 | 8.5 | 42.9 | 28.7 | 95.3 | 25.4 | 68.3 | 60.5 | 134.9 | 2.57 |
| 1-1/8 | 9.5 | 46 | 31.8 | 108 | 28.7 | 73.9 | 68.3 | 149.9 | 3.75 |
| 1-1/4 | 12 | 51.6 | 35.1 | 119.1 | 31.8 | 82.6 | 76.2 | 165.4 | 5.31 |
| 1-3/8 | 13.5 | 57.2 | 38.1 | 133.4 | 35.1 | 92.2 | 84.1 | 183.1 | 7.18 |
| 1-1/2 | 17 | 60.5 | 41.4 | 140.1 | 38.1 | 98.6 | 92.2 | 196.3 | 9.43 |
| 1-3/4 | 25 | 73.2 | 50.8 | 177.8 | 44.5 | 127 | 106.4 | 229.8 | 15.38 |
| 2 | 35 | 82.6 | 57.2 | 196.9 | 50.8 | 146.1 | 122.2 | 264.4 | 23.7 |
| 2-1/2 | 55 | 104.9 | 70 | 266.7 | 66.5 | 184.2 | 144.5 | 344.4 | 44.57 |
| 3 | 85 | 127 | 82.6 | 330.2 | 76.2 | 200.2 | 165.1 | 419.1 | 69.35 |
| 3-1/2 | 120 | 133.4 | 95.3 | 371.6 | 91.9 | 228.6 | 203.2 | 482.6 | 120.2 |
