Product Details:
|

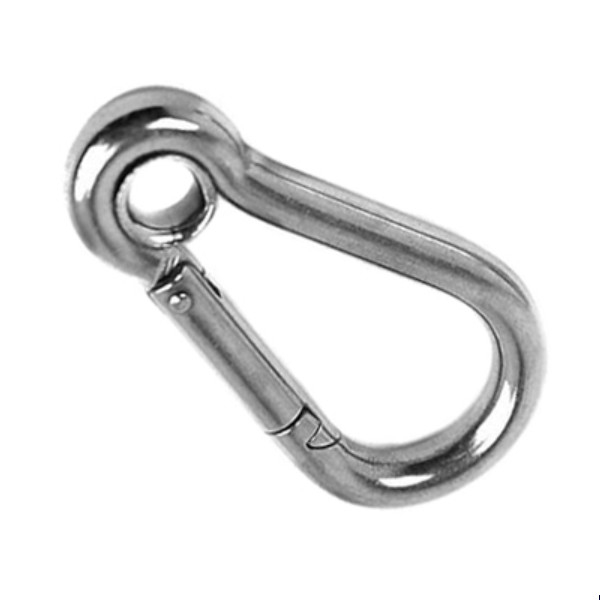

Product Name: | DIN5299 A Stainless Steel Snap Hook With Eyelet | Material: | Stainless Steel |
---|---|---|---|
Surface: | Polished | Size: | M4x40 - M13x160 |
Packing: | Cartong + Pallet | WLL: | 200 - 1400 Lbs |
High Light: | DIN5299 spring snap hook with eyelet,spring snap hook with eyelet M4x40,snap hook with eyelet M13x160 |
Stainless steel snap hook with eyelet is made by high quality 304 stainless steel with polishing on the surface. It is indispensable to lifting equipment. Snap hook plays an important role in improving the operational efficiency of hoisting equipment and expanding the scope of work of crane. Especially in the process of using stainless steel wire rope, if the length of it is not enough, we can use snap hooks to cannect.
Product details:
1. Item: Stainless steel snap hook with eyelet
2. Material: high polished stainless steel
3. Technology: drop forged
4. Surface: polished, zinc plated
5. Size: 4mm-14mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement
Specification:
Size(D) | A | E | L |
mm | mm | mm | mm |
4 | 5 | 6 | 40 |
5 | 6.5 | 7 | 50 |
6 | 7.5 | 8 | 60 |
7 | 9 | 8 | 70 |
8 | 10 | 9 | 80 |
9 | 11 | 10 | 90 |
10 | 13 | 12 | 100 |
11 | 15 | 16 | 120 |
12 | 18 | 19 | 140 |
13 | 20 | 25 | 160 |
14 | 20 | 35 | 180 |
