Product Details:
|
Product Name: | DIN5299 Stainless Steel Snap Hook With Nut | Material: | Stainless Steel |
---|---|---|---|
Surface: | Polished | Size: | M5x50 - M14x180 |
Packing: | Cartong + Pallet | WLL: | 220 - 1600 Lbs |
High Light: | DIN5299 Stainless Steel Rigging Hardware,14mm Stainless Steel Rigging Hardware,stainless steel snap hook With Nut |

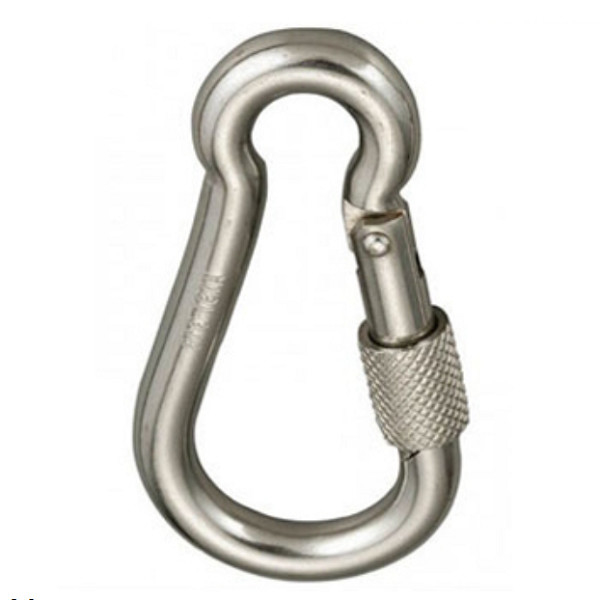

DIN 5299 stainless steel snap hook with nut mainly used to link when lifting heavy weights. It is indispensable to lifting equipment. Snap hooks made by 304 stainless steel have good cost performance. They have excellent corrosion resistant and brightness surface. So it could be used in decoration or the place with higher requirements.
Product details:
1. Item: DIN 5299 snap hook with nut
2. Material: high stainless steel
3. Technology: drop forged
4. Surface:polished, zinc plated
5. Size: 5mm-14mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement
Specification:
Size ΦD | N.W | A | B | C | L |
mm | kg/100pcs | mm | mm | mm | mm |
5 | 2 | 25 | 8 | 7 | 50 |
6 | 3 | 30 | 9 | 8 | 60 |
7 | 5 | 35 | 10 | 8 | 70 |
8 | 7.5 | 40 | 12 | 9 | 80 |
9 | 9.8 | 45 | 12 | 10 | 90 |
10 | 16 | 50 | 16 | 11 | 100 |
11 | 21 | 57 | 18 | 16 | 120 |
12 | 27 | 67 | 20 | 19 | 140 |
13 | 36 | 74 | 22 | 25 | 160 |
14 | 51 | 86 | 22 | 35 |
180 |
