Product Details:
|
Product Name: | DIN5299 C Snap Hook | Material: | Steel |
---|---|---|---|
Surface: | Zinc Plated | Size: | M4x40 - M15x200 |
Packing: | Cartong + Pallet | ||
High Light: | DIN5299 C Spring Snap Hook,Spring Snap Hook ISO9001,spring snap clips M15 x 200 |

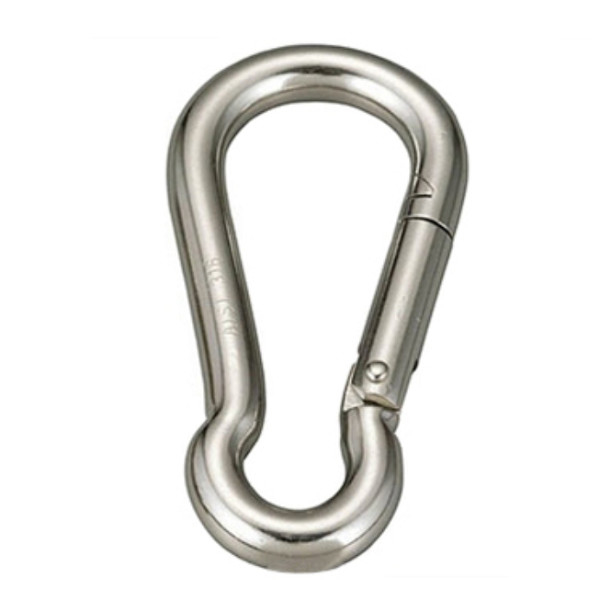

DIN 5299 snap hook is made by high polished stainless steel with advanced international production process. It can be used to fast and effectively connect the protection. And the most important and convinent usage of it is carrying goods. Besides that, it have excellent corrosion resistant and brightness surface. So it could be used in decoration or the place with higher requirements.
Product details:
1. Item: Quick link
2. Material: high stainless steel, carbon steel
3. Technology: drop forged
4. Surface: polished, zinc plated
5. Size: 4mm-15mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement
Specification:
Size d | N.W | B | D | S | L |
mm | kg/100pcs | mm | mm | mm | mm |
4 | 0.8 | 20 | 7 | 7 | 40 |
5 | 1.6 | 25 | 8 | 7 | 50 |
6 | 2.8 | 30 | 9 | 8 | 60 |
7 | 4.5 | 35 | 10 | 8 | 70 |
8 | 6.3 | 40 | 12 | 9 | 80 |
9 | 9 | 45 | 12 | 10 | 90 |
10 | 12.5 | 50 | 16 | 11 | 100 |
11 | 19.2 | 57 | 18 | 16 | 120 |
12 | 25 | 67 | 20 | 19 | 140 |
13 | 35 | 74 | 22 | 25 | 160 |
14 | 45.5 | 86 | 22 | 35 | 180 |
15 | 61.8 | 90 | 25 | 37 | 200 |
