M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook

M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook
M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook
M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook

Large Image :  M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: 322
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

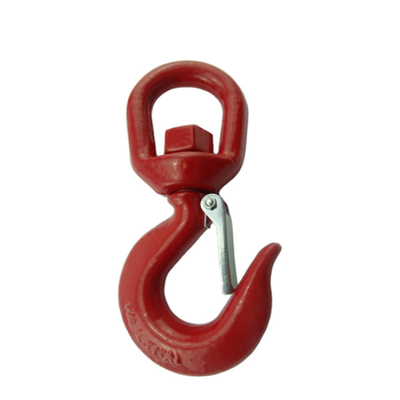

M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook

Description
Product Name: 322 US Type Lifting Swivel Hook Material: Carbon Steel, Alloy
Surface: Color Painted Size: M32 - M105
Packing: Cartong + Pallet WLL: 0.5 - 30 Tons
High Light:

M32 Spring Snap Hook Color Painted

,

M105 Spring Snap Hook 322

,

US Type lifting swivel hook

Color Painted 322 US Type Lifting Swivel Hook

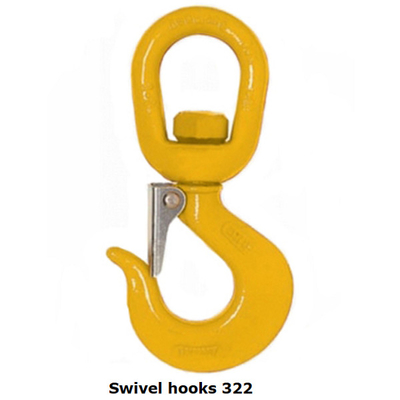

Sweivel hooks 322 is more flexible and convenient than other solid hooks, bacause its lifting angel and rotation angle can be changed aibitratrily. Their work load limited is different according to their material quality. The maximum test load is 2 times of work load, and the minimum break load is 4 times of work load.

Product details:

1. Item: Swivel hooks 322

2. Type: US type

3. Material: alloy steel or carbon steel

4. Surface: zinc plated or color painted

5. Technology: drop forged

6. WLL: A322:1T-11T/ C322:0.75T-7.5T

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 0.75lbs-16.25lbs

Special specifications and marks can be made according to customers requirement

Specification:

W.L.L.(T) Dimention(in) Weight
322C 322A B C E R S T O lbs
0.75 1 0.94 1.25 1.31 4.47 0.38 0.81 0.87 0.75
1 1.5 1.31 1.5 1.03 5.28 0.5 0.81 0.97 1.25
1.5 2 1.63 1.75 0.06 6.02 0.63 0.84 1 2.25
2 3 1.56 1.75 1.22 6.38 0.63 1.19 1.13 2.57
3 4.5 1.75 2 1.5 7.41 0.75 1.37 1.34 4.75
5 7 2.31 2.5 1.88 9.59 1 1.78 1.69 10.29
7.5 11 2.37 2.75 2.25 11.13 1.13 2.13 2.06 16.25



M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook 0

M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook 1M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook 2



Packing & Delivery



M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook 3

M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook 4
