Product Details:
|
| Product Name: | 320 Eye Slip Hook With Latch | Material: | Carbon Steel, Alloy |
|---|---|---|---|
| Surface: | Color Painted | Size: | M16.5 - M90 |
| Packing: | Cartong + Pallet | WLL: | 0.5 - 135 Tons |
| High Light: | Color Painted clevis latch hook,320 clevis latch hook M16.5,Slip Hook with Latch M90 |
||

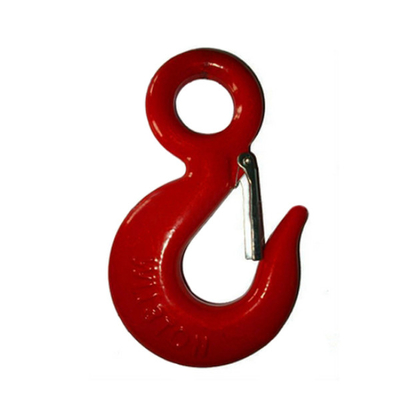

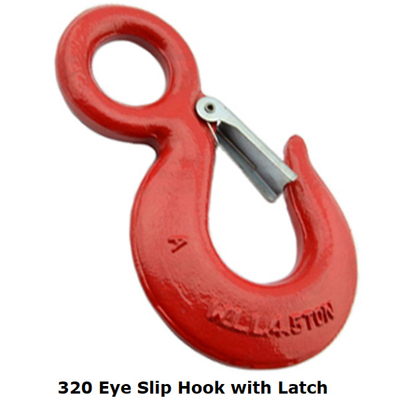

320 eye slip hook with latch is designed to use with G80 alloy chain and steel wire rope. It can be applied to shorten or hook long chain. And its structure of eye type make it can be used widely with omega links, connecting links and other lifting components in many circumstance.
Product details:
1. Item: 320 eye slip hook with latch
2. Material: A320-alloy steel/ C320-carbon steel
3. Technology: drop forged
4. Surface: hot dip galvanized, zinc plated or self color
5. WLL: A320:0.21T-27.2T/ C320:3.75T-135T
6. Breaking load: 4 times of working load
7. Usage: lifting, rigging
8. Size: 6mm-32mm
9.Special specifications and marks can be made according to customers requirement
Specification:
| Weight | W.L.L.(T) | Φ | E | H | K | L | |
| kg | A320 | C320 | mm | mm | mm | mm | mm |
| 2.5 | 0.21 | 3.75 | 16.5 | 19 | 17 | 72 | 97 |
| 3.75 | 0.28 | 5 | 19 | 22 | 19 | 82 | 110 |
| 5 | 0.4 | 7.5 | 23 | 23 | 21 | 93.5 | 125 |
| 7.5 | 0.65 | 10 | 28 | 24 | 26 | 103 | 140.5 |
| 10 | 0.94 | 15 | 31 | 27.5 | 28 | 119 | 162 |
| 15 | 1.95 | 25 | 39 | 33 | 37 | 146 | 201 |
| 25 | 3.77 | 35 | 51 | 40 | 46.5 | 186.5 | 256 |
| 37.5 | 6.8 | 55 | 62 | 51 | 57 | 231.5 | 317 |
| 50 | 9.8 | 75 | 73 | 57 | 67 | 261 | 360 |
| 75 | 16.25 | 110 | 89 | 75 | 76 | 318 | 434 |
| 100 | 27.2 | 135 | 90 | 82 | 91 | 360 | 495.5 |
