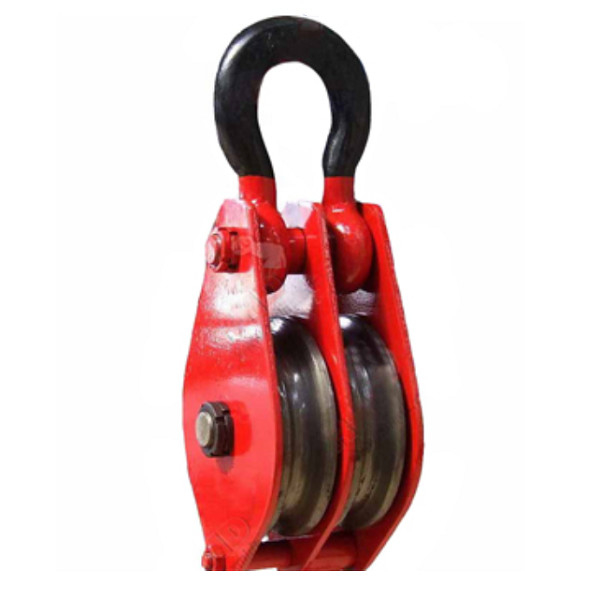

Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block

Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block
Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block
Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block

Large Image :  Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Pulley
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block

Description
Product Name: Power Coated Double Sheaves Pulley Block Material: Steel
Surface: Power Coated Or Galvanized Size: 1/2 Inch-3 Inch
WLL: 12mm-42mm Packaging: Carton + Pallet
High Light:

Marine Rigging Hardware 12mm

,

Power Coated Marine Rigging Hardware ISO

,

double sheave pulley block 42mm

Power Coated Double Sheaves Pulley Block

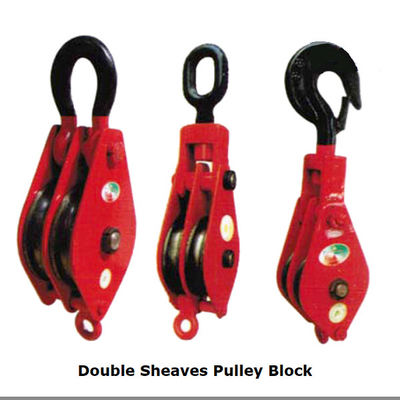

Double sheaves pulley block is made from forged high strength alloy steel. It has advantages of light weight, good quality and high safety coefficiency. It can be widely used in lifting and hoisting works of dock, shipyard, warehouse and so on.

Product Details:

1. Item: Double sheaves pulley block

2. Material: Steel

3. Technology: Drop forged

4. Surface: Power coated or galvanized

5. WLL: 1T-32T

6. Braking load is 4 times of working load limited

7. Usage: Lifting

8. Size: 12mm-42mm

9. Special specifications and marks can be made according to customers requirement

Specification:



Rated Load(T) Weight(kg) Rope Dia.(mm) H(mm) B(mm) L(mm)
1 3.05 6.2 245 98 78
2 5.96 7.7 316 116 94
3.2 10 11 400 152 112
5 15.9 12.5 490 176 132
8 30.1 15.5 590 212 163
10 41 17 675 236 169
16 82.3 23 805 316 214
20 118 26 930 364 223
32 237.5 31 1145 452 270



Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block 0

Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block 1



Packing & Delivery



Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block 2

Power Coated Marine Rigging Hardware 12mm - 42mm Double Sheave Pulley Block 3
