0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated

0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated
0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated
0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated 0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated 0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated

Large Image :  0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Eye Swivel
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated

Description
Product Name: Self Color Carbon Steel Double Eye Swivel Material: Carbon Steel
Surface: Hot Dip Galvanized, Zinc Plated Size: 8mm-24mm
Packing: Cartong + Pallet WLL: 0.3T-6T
High Light:

0.3T Marine Rigging Hardware

,

6T Marine Rigging Hardware

,

double round eye swivel zinc plated

Self Color Carbon Steel Double Eye Swivel

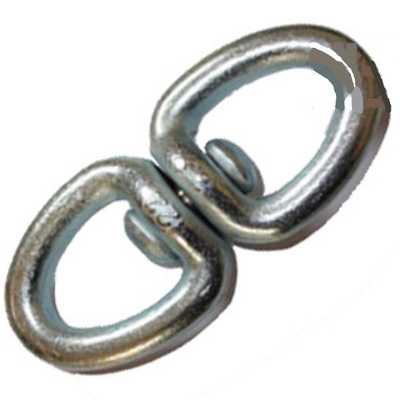

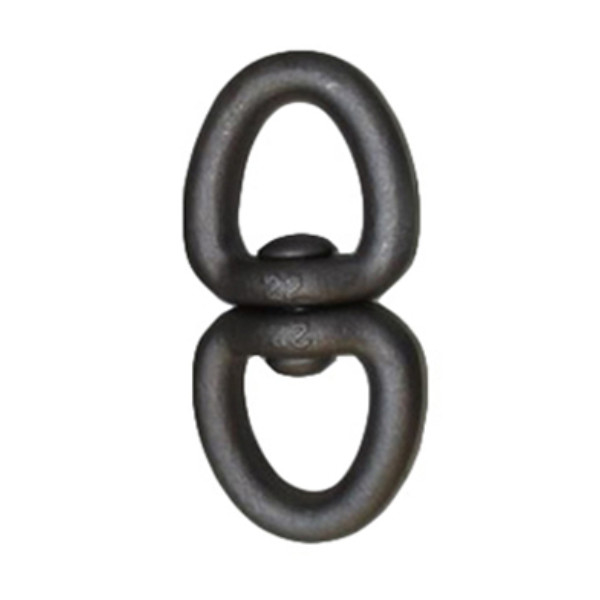

Double eye swivel is made by high quality carbon steel with hot dip galvanized on the surface. The working load of it is from 0.3 ton to 6 ton. And its size is from 8mm to 24mm. It has the advantages of small volume, light weight and high strength.So it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product details:

1. Item: Double eye swivel

2. Material: carbon steel

3. Technology: drop forged

4. Surface: hot dip galvanized, zinc plated

5. WLL:0.3T-6T

6. Breaking load: 4 times of working load

7. Usage: lifting, rigging

8. Size: 8mm-24mm

9. Special specifications and marks can be made according to customers requirement

Specification:

Size Φ A B WLL Weight
mm mm mm mm ton kg
8 8 30 22 0.3 0.15
10 10 38 29 0.7 0.25
12 12 40 32 1.2 0.4
14 14 46 36 2 0.6
16 16 50 40 3 0.85
18 18 55 46 3.5 1.2
22 22 70 55 5 2
24 24 80 64 6

3





0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated 0



Packing & Delivery



0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated 1

0.3T - 6T Marine Rigging Hardware Double Round Eye Swivel Zinc Plated 2
