Product Details:
|
| Product Name: | H.D.G. Forged Eye Bolt | Material: | Carbon Steel |
|---|---|---|---|
| Process: | Hot Forged | Surface: | H. D. G. |
| Usage: | Electric Power Fitting | Packing: | Cartong + Pallet |
| High Light: | CE power line fittings,power line fittings 600mm,HDG Forged Eye Bolt 150MM |
||

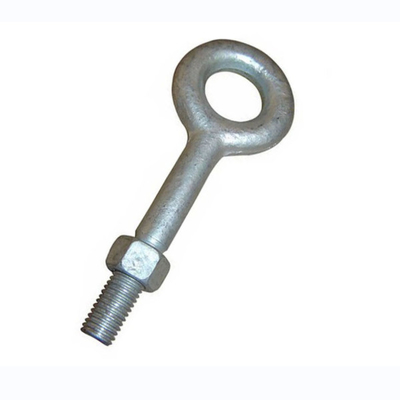

A forged eye bolt is an overhead power line accessory that is used for connecting dead end insulator in an overhead line. The power line fitting is widely used on wooden poles whereby it can connect the overhead line or even dead end insulator.
It can also be referred to as the drop forged eye bolt or just forged eyebolt.

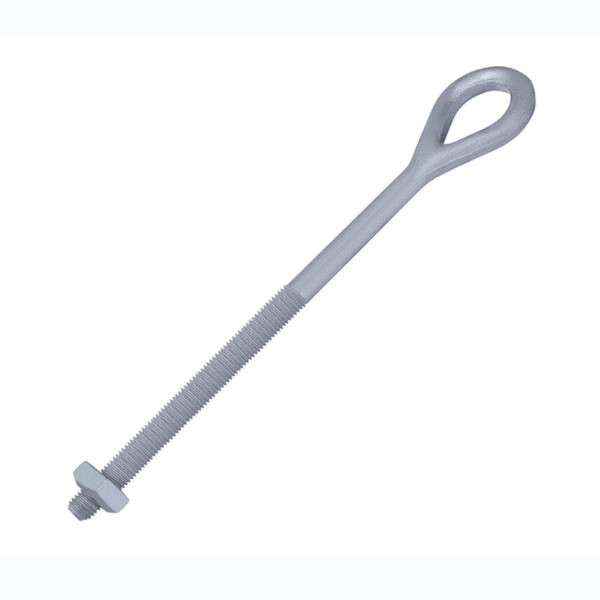

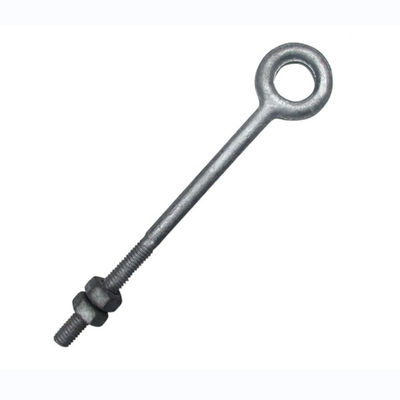

Forged eye bolts come in two main designs. These are the oval eye bolts and the round eye bolts. The forged oval eye bolt has a thimble. When you connect the eye bolt to the clevis or a dead end insulator, this thimble will remain locked.
Forged eye bolts are usually assembled with square and hex nuts. The nut is then fastened on the eye bolt once it has gone across the wooden pole.
Our forged eye bolts are made of galvanized steel and are not welded at any point. This means that you can be sure about the strength of this electric power line accessory.
The galvanization is there to protect against corrosion. Water and other chemicals won’t have negative effects on these power line fittings.
To buy forged eye bolts, simply contact us as we are a reputable forged eye bolt manufacturer in China.
| Dimensions in inches and millimeters | |||
| C | D | L | T |
| 1 1/2″(38) | 5/8″(16) | 6″(150) | 4″(100) |
| 1 1/2″(38) | 5/8″(16) | 8″(200) | 4″(100) |
| 1 1/2″(38) | 5/8″(16) | 9″(230) | 4″(100) |
| 1 1/2″(38) | 5/8″(16) | 10″(250) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 12″(300) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 14″(350) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 16″(400) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 18″(450) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 20″(500) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 22″(550) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 24″(600) | 6″(150) |
| 1 1/2″(38) | 5/8″(16) | 6″(150) | 4″(100) |
| 1 1/2″(38) | 3/4″(20) | 8″(200) | 4″(100) |
| 1 1/2″(38) | 3/4″(20) | 9″(230) | 4″(100) |
| 1 1/2″(38) | 3/4″(20) | 10″(250) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 12″(300) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 14″(350) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 16″(400) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 18″(450) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 20″(500) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 22″(550) | 6″(150) |
| 1 1/2″(38) | 3/4″(20) | 24″(600) | 6″(150) |
