M16 M20 HDG Pole Band Power Line Fittings

M16 M20 HDG Pole Band Power Line Fittings
M16 M20 HDG Pole Band Power Line Fittings
M16 M20 HDG Pole Band Power Line Fittings M16 M20 HDG Pole Band Power Line Fittings M16 M20 HDG Pole Band Power Line Fittings M16 M20 HDG Pole Band Power Line Fittings M16 M20 HDG Pole Band Power Line Fittings

Large Image :  M16 M20 HDG Pole Band Power Line Fittings

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Pole Band
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

M16 M20 HDG Pole Band Power Line Fittings

Description
Product Name: H.D.G. Pole Band Material: Carbon Steel
Process: Hot Forged Surface: H. D. G.
Usage: Electric Power Fitting Packing: Cartong + Pallet
High Light:

M16 power line fittings

,

M20 power line fittings

,

HDG pole band

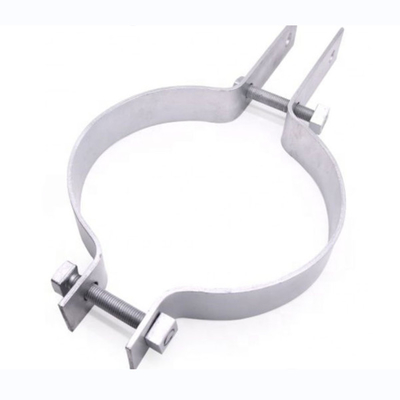

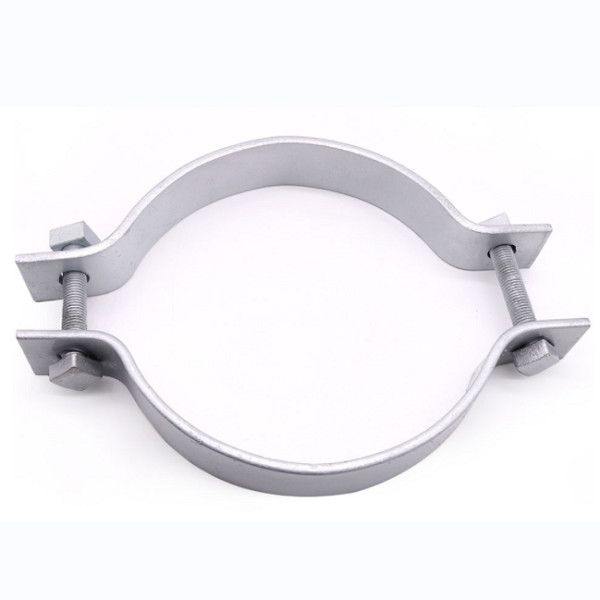

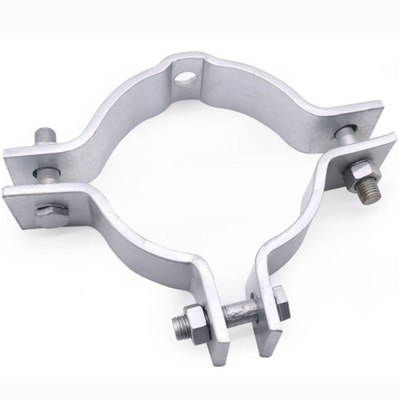

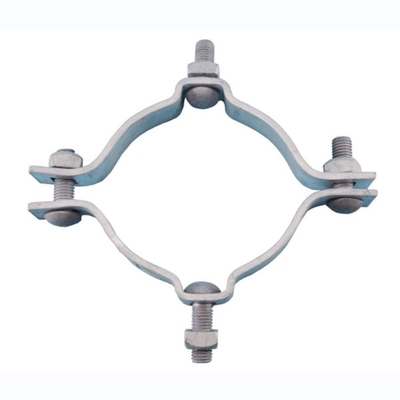

H.D.G. Pole Band

A pole band is an accessory that is used for attaching secondary racks to the poles. The secondary racks are then used for supporting other pole line fittings and even the cables. A pole band is also known as the pole fastener or a fastening clamp.

Given their function, pole bands are used on different types of poles. You can choose to buy a power line pole band or telephone pole band.

When it comes to the pole band designs, they are designed to suit perfectly around the poles. A single pole band comprises of two pieces of metal which are enjoined together by bolts to form a circular-like shape. The bolts ensure that the pole band is attached to the pole tightly.

The pole bands come in different sizes so you should choose one whose diameter will match with your pole. You can even request for the custom size of the pole band.

The simplicity of these pole bands makes it easy to install them at their appropriate positions on the pole. It will also allow you to make the necessary adjustments when that time comes.

For the purpose of stability and reliability, our pole bands are made of galvanized steel material. This material has a high tensile strength which enables it to sustain heavy loads. The pole band won’t snap or break easily even when supporting heavy items.

The hot dip galvanized coating protects the steel surface from various elements that can damage this powerline hardware. Such elements include dust, water, chemicals, and heat.

If you are planning to import a pole band in China, talk to us. We are a reliable pole band manufacturer that you can trust.

M16 M20 HDG Pole Band Power Line Fittings 0



Type Clamp Range Width Gauge
Dimension Range (mm) Inch mm mm
Inch (mm)
RL 8(203) 178-203 7/8 64/50 8/6
9(229) 203-229 8/9
10(254) 229-254 9/10
11(279) 254-279 10/11
CA 8(203) 178-203 7/8
9(229) 203-229 8/9
10(254) 229-254 9/10
DEG 8(203) 178-203 7/8
9(229) 203-229 8/9
10(254) 229-254 9/10
GCA 8(203) 178-203 7/8
9(229) 203-229 8/9
10(254) 229-254 9/10



Packing & Delivery

M16 M20 HDG Pole Band Power Line Fittings 1

M16 M20 HDG Pole Band Power Line Fittings 2
