Product Details:
|
| Product Name: | H.D.G. Guy Clamp | Material: | Carbon Steel |
|---|---|---|---|
| Process: | Hot Forged | Surface: | H. D. G. |
| Usage: | Electric Power Fitting | Packing: | Cartong + Pallet |
| High Light: | carbon steel power line fittings,power line fittings hot forging,HDG Surface guy wire clamp |
||
Guy clamp is a type of suspension clamp for overhead power line and communication line, it can be used in loop type guy dead-ends. Guy clamp is also called guy wire clamp, parallel groove clamp or straight cable suspension clamp.

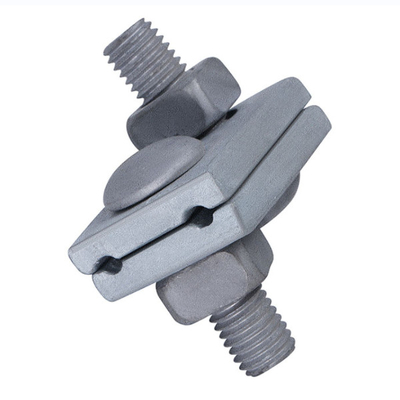

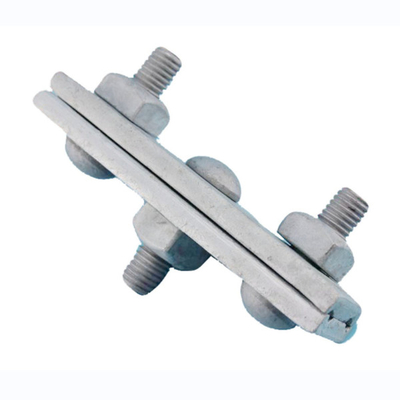

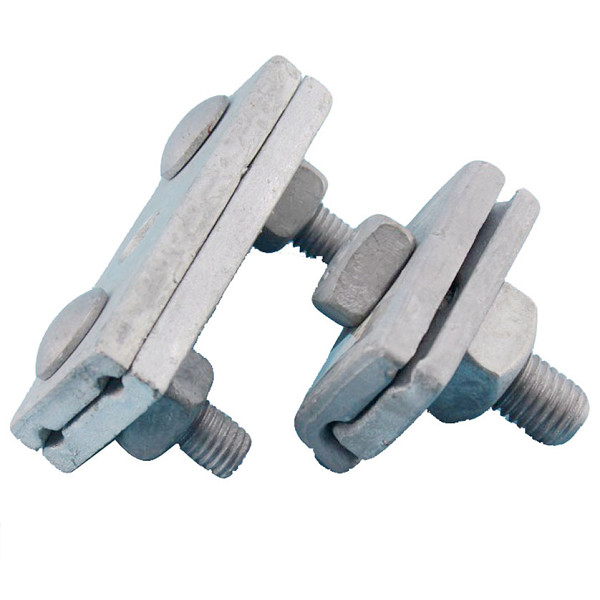

According to the number of clamping bolts used on the clamp, there are 1 bolt guy clamps, 2 bolt guy clamps and 3 bolt guy clamps. Guy clamps are designed and manufactured for optimum performance levels.
In terms of the design and the structural appearance, these guy clamps are straight and have parallel grooves. This design ensures that the guy strands are not damaged during the installation process. The design also ensures that the guy clamps have the maximum holding strength.
Guy clamps come in different sizes. The size is determined by the length, width, and diameter of the groove. This means that some guy clamps are longer or wider than others. At the same time, the groove of some guy clamps can support wider strands than others.
The plate halves of the guy clamp are aligned evenly hence easing the installation process. You will not make any mistake when it comes to installing the strands through the guy clamp.
If you would like to get more information about this overhead line fitting, including the guy clamp price, just contact us. We will give you all the technical information that you need to know about the guy clamp.
Material:
Guy clamps are rolled from premium quality carbon steel. So far, this is one of the best materials for making guy clamps and other power line fittings. The steel material is strong enough and has a high tensile strength to sustain mechanical forces.
Heavy Duty Drop Forged
| No.of Bolt | Bolt Diameter Inch |
Clamp Dimension mm |
Approximate Ship Weight kg./100pcs |
||
| Length | Width | Thickness | |||
| 1 | 1/2 | 42 | 44 | 9.1 | 30.50 |
| 1 | 5/8 | 50 | 44 | 9.1 | 35.00 |
| 2 | 1/2 | 62 | 44 | 9.1 | 60.00 |
| 2 | 5/8 | 70 | 44 | 9.1 | 64.50 |
| 3 | 1/2 | 100 | 44 | 9.1 | 103.50 |
| 3 | 5/8 | 152 | 44 | 9.1 | 122.00 |
Light Duty Drop Forged
| No.of Bolt | Bolt Diameter Inch |
Clamp Dimension mm |
Approximate Ship Weight kg./100pcs |
||
| Length | Width | Thickness | |||
| 1 | 1/2 | 42 | 44 | 8.3 | 24.40 |
| 1 | 5/8 | 50 | 44 | 8.3 | 28.50 |
| 2 | 1/2 | 62 | 44 | 8.3 | 48.40 |
| 2 | 5/8 | 70 | 44 | 8.3 | 52.00 |
| 3 | 1/2 | 100 | 44 | 8.3 | 83.00 |
| 3 | 5/8 | 152 | 44 | 8.3 | 97.50 |
The strength of the steel guy clamp is boosted through a hot-dip galvanization process. Since this pole line fitting is exposed to various elements of nature such as rain, high temperature, humidity, and chemicals, it needs ultimate protection. The galvanization process creates a coating that shields the steel material from all these elements.
There are many factors that influence the strength of a loop type dead-end formed by a guy clamp. Such as guy clamp materials, guy strand type, the number of bolts, and clamp bolt torque.
In order to achieve sufficient holding strength, the guy clamps and fittings should be used on the proper size strand shown in the following table.
