Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment

Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment
Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment
Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment

Large Image :  Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Dead End Tee Guy Attachment
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment

Description
Product Name: H.D.G. Dead End Tee Guy Attachment Material: Carbon Steel
Process: Hot Forged Surface: H. D. G.
Usage: Electric Power Fitting Packing: Cartong + Pallet
High Light:

power line fittings guy attachment

,

Hot forged power line fittings

,

dead end tee guy attachment

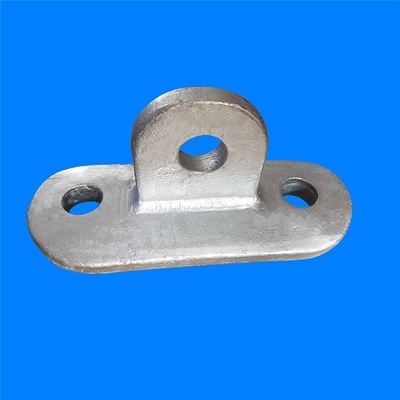

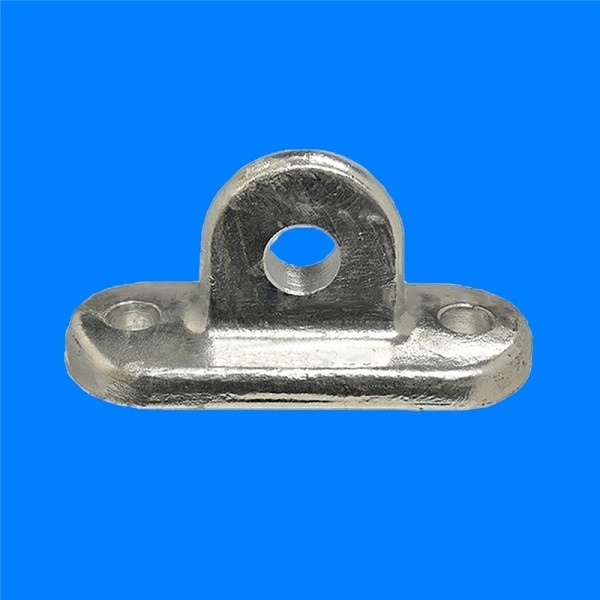

H.D.G. Dead End Tee Guy Attachment

Available with either flat mounting base (DET series) or curved mounting base (DETR series)
Used for high strength, pole connection interface to clevises, thimble clevises, insulators, shackles and other deadend attachments.
For use on wood, steel, concrete or fiberglass poles Material: Steel - Hot Dip Galvanized



Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment 0

A (in) B (in) Ultimate Strength Weight/100 (lbs)
15/16 1-1/4 60000 640
1-1/16 1-1/8 60000 640



Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment 1

A (in) B (in) Ultimate Strength Weight/100 (lbs)
13/16 15/16 60000 690
1-1/16 1-1/8 60000 680
1-3/16 1-1/8 60000

670



Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment 2Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment 3





Packing & Delivery

Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment 4

Hot Forged Power Line Fittings HDG Dead End Tee Guy Attachment 5
