1/2" Electric Power Fittings HDG Forged Double Armign Bolts

1/2" Electric Power Fittings HDG Forged Double Armign Bolts

1/2" Electric Power Fittings HDG Forged Double Armign Bolts

1/2" Electric Power Fittings HDG Forged Double Armign Bolts

Large Image : 1/2" Electric Power Fittings HDG Forged Double Armign Bolts

Product Details:

Place of Origin:	CHINA
Brand Name:	LKY
Certification:	CE, ISO
Model Number:	Double Armign Bolts

Payment & Shipping Terms:

Minimum Order Quantity:	1 ton
Price:	Negotiable
Packaging Details:	Carton + Pallet
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	200 tons per month

Contact Now

1/2" Electric Power Fittings HDG Forged Double Armign Bolts

Description

Product Name:	H.D.G. Forged Double Armign Bolts	Material:	Carbon Steel
Process:	Hot Forged	Surface:	H. D. G.
Usage:	Electric Power Fitting	Packing:	Cartong + Pallet
High Light:	1/2" Electric Power Fittings , Electric Power Fittings CE , HDG Forged double arming bolts

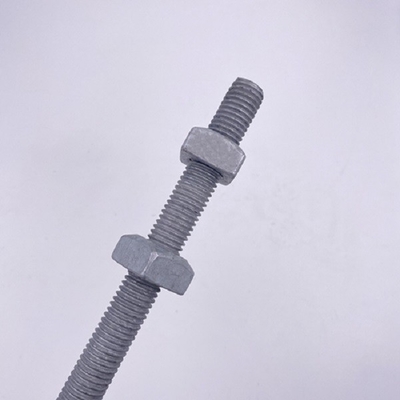

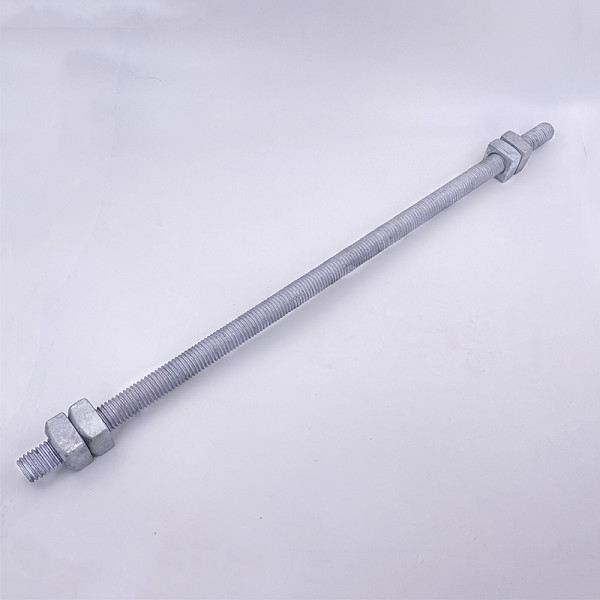

H.D.G. Forged Double Armign Bolts

Double arming bolt is also called double threaded bolt, double ended bolt, or DA bolt. According to the length of the thread, the double arming bolts include all thread bolts and double threaded bolts. Contact us for size not listed on tables below.

1/2" DOUBLE ARMING BOLT WITH 2 NUTS

Length (Inches)	Finish	couple with	Weight
8	Hot Dip Galvanized	4 Square Nuts	0.61
10	Hot Dip Galvanized	4 Square Nuts	0.7
12	Hot Dip Galvanized	4 Square Nuts	0.79
14	Hot Dip Galvanized	4 Square Nuts	0.88
16	Hot Dip Galvanized	4 Square Nuts	0.97
18	Hot Dip Galvanized	4 Square Nuts	1.06
20	Hot Dip Galvanized	4 Square Nuts	1.15
22	Hot Dip Galvanized	4 Square Nuts	1.24
24	Hot Dip Galvanized	4 Square Nuts	1.33
26	Hot Dip Galvanized	4 Square Nuts	1.42
28	Hot Dip Galvanized	4 Square Nuts	1.51
30	Hot Dip Galvanized	4 Square Nuts	1.6
32	Hot Dip Galvanized	4 Square Nuts	1.69
34	Hot Dip Galvanized	4 Square Nuts	1.78
36	Hot Dip Galvanized	4 Square Nuts	1.87

5/8" DOUBLE ARMING BOLT WITH 4 NUTS

Length (Inches)	Finish	couple with	Weight
8	Hot Dip Galvanized	4 Square Nuts	0.95
10	Hot Dip Galvanized	4 Square Nuts	1.09
12	Hot Dip Galvanized	4 Square Nuts	1.23
14	Hot Dip Galvanized	4 Square Nuts	1.37
16	Hot Dip Galvanized	4 Square Nuts	1.51
18	Hot Dip Galvanized	4 Square Nuts	1.65
20	Hot Dip Galvanized	4 Square Nuts	1.79
22	Hot Dip Galvanized	4 Square Nuts	1.93
24	Hot Dip Galvanized	4 Square Nuts	2.07
26	Hot Dip Galvanized	4 Square Nuts	2.21
28	Hot Dip Galvanized	4 Square Nuts	2.35
30	Hot Dip Galvanized	4 Square Nuts	2.49
32	Hot Dip Galvanized	4 Square Nuts	2.63
34	Hot Dip Galvanized	4 Square Nuts	2.77
36	Hot Dip Galvanized	4 Square Nuts	2.91

3/4" DOUBLE ARMING BOLT WITH 4 NUTS

Length (Inches)	Finish	couple with	Weight
8	Hot Dip Galvanized	4 Square Nuts	1.43
10	Hot Dip Galvanized	4 Square Nuts	1.64
12	Hot Dip Galvanized	4 Square Nuts	1.85
14	Hot Dip Galvanized	4 Square Nuts	2.06
16	Hot Dip Galvanized	4 Square Nuts	2.27
18	Hot Dip Galvanized	4 Square Nuts	2.48
20	Hot Dip Galvanized	4 Square Nuts	2.69
22	Hot Dip Galvanized	4 Square Nuts	2.9
24	Hot Dip Galvanized	4 Square Nuts	3.11
26	Hot Dip Galvanized	4 Square Nuts	3.32
28	Hot Dip Galvanized	4 Square Nuts	3.53
30	Hot Dip Galvanized	4 Square Nuts	3.74
32	Hot Dip Galvanized	4 Square Nuts	3.95
34	Hot Dip Galvanized	4 Square Nuts	4.16
36	Hot Dip Galvanized	4 Square Nuts	4.37

7/8" DOUBLE ARMING BOLT WITH 4 NUTS

Length (Inches)	Finish	couple with	Weight
8	Hot Dip Galvanized	4 Square Nuts	2.04
10	Hot Dip Galvanized	4 Square Nuts	2.32
12	Hot Dip Galvanized	4 Square Nuts	2.6
14	Hot Dip Galvanized	4 Square Nuts	2.88
16	Hot Dip Galvanized	4 Square Nuts	3.16
18	Hot Dip Galvanized	4 Square Nuts	3.44
20	Hot Dip Galvanized	4 Square Nuts	3.72
22	Hot Dip Galvanized	4 Square Nuts	4
24	Hot Dip Galvanized	4 Square Nuts	4.28
26	Hot Dip Galvanized	4 Square Nuts	4.56
28	Hot Dip Galvanized	4 Square Nuts	4.84
30	Hot Dip Galvanized	4 Square Nuts	5.12
32	Hot Dip Galvanized	4 Square Nuts	5.4
34	Hot Dip Galvanized	4 Square Nuts	5.68
36	Hot Dip Galvanized	4 Square Nuts	5.96

1" DOUBLE ARMING BOLT WITH 4 NUTS

Length (Inches)	Finish	couple with	Weight
8	Hot Dip Galvanized	4 Square Nuts	2.69
10	Hot Dip Galvanized	4 Square Nuts	3.07
12	Hot Dip Galvanized	4 Square Nuts	3.45
14	Hot Dip Galvanized	4 Square Nuts	3.83
16	Hot Dip Galvanized	4 Square Nuts	4.21
18	Hot Dip Galvanized	4 Square Nuts	4.59
20	Hot Dip Galvanized	4 Square Nuts	4.97
22	Hot Dip Galvanized	4 Square Nuts	5.35
24	Hot Dip Galvanized	4 Square Nuts	5.73
26	Hot Dip Galvanized	4 Square Nuts	6.11
28	Hot Dip Galvanized	4 Square Nuts	6.49
30	Hot Dip Galvanized	4 Square Nuts	6.87
32	Hot Dip Galvanized	4 Square Nuts	7.25
34	Hot Dip Galvanized	4 Square Nuts	7.63
36	Hot Dip Galvanized	4 Square Nuts	8.01

1/2" Electric Power Fittings HDG Forged Double Armign Bolts 0

Packing & Delivery

1/2" Electric Power Fittings HDG Forged Double Armign Bolts 2

1/2" Electric Power Fittings HDG Forged Double Armign Bolts 3
