Product Details:
|
| Product Name: | Carbon Steel Material Galvanized DIN 582 Eye Nut | Material: | Carbon Steel, Stainless Steel, Alloy Steel |
|---|---|---|---|
| Surface: | Galvanized,hot Dipped Galvanized | Size: | M6-M100 |
| WLL: | 0.08-40tons | Packing: | Cartong + Pallet |
| High Light: | Forged Eye Nut M6,Carbon Steel Forged Eye Nut M100,Galvanized DIN 582 Eye Nut |
||
DIN 582 eye nuts are important for marine hardware. Our company has produced this model for several years. All of them have required relative society certifications. What's more, our professional sales team will provide you with the best service. Please feel free to contact with us.
Details:

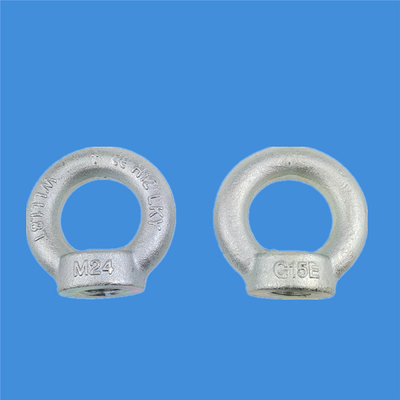

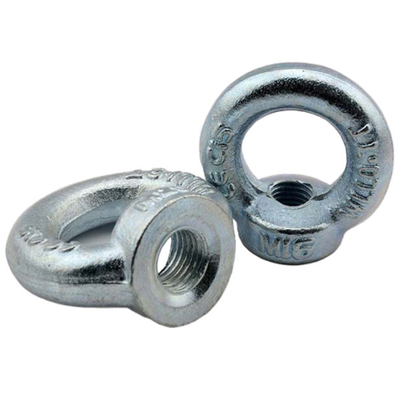

1. Model: DIN 582 Eye Nut
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: From M6 to M100
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size | WLL | Dimensions(mm) | Weight | |||||
| d | tons | d2 | d3 | d4 | e | h | k | kgs/100pcs |
| M6 | 0.08 | 20 | 36 | 20 | 8.5 | 31 | 8 | 4.9 |
| M8 | 0.14 | 20 | 36 | 20 | 8.5 | 36 | 8 | 5 |
| M10 | 0.23 | 25 | 45 | 25 | 10 | 45 | 10 | 9 |
| M12 | 0.34 | 30 | 54 | 30 | 11 | 53 | 12 | 16 |
| M14 | 0.49 | 35 | 63 | 35 | 13 | 62 | 14 | 24 |
| M16 | 0.7 | 35 | 63 | 35 | 13 | 62 | 14 | 24 |
| M18 | 0.95 | 40 | 72 | 40 | 16 | 71 | 16 | 36 |
| M20 | 1.2 | 40 | 72 | 40 | 16 | 71 | 16 | 36 |
| M22 | 1.5 | 45 | 81 | 45 | 18 | 80.5 | 18 | 58 |
| M24 | 1.8 | 50 | 90 | 50 | 20 | 90 | 20 | 72 |
| M27 | 2.5 | 50 | 90 | 50 | 20 | 90 | 20 | 70 |
| M30 | 3.6 | 65 | 108 | 60 | 25 | 109 | 24 | 132 |
| M33 | 4.3 | 65 | 108 | 60 | 25 | 109 | 24 | 130 |
| M36 | 5.1 | 75 | 126 | 70 | 30 | 128 | 28 | 208 |
| M39 | 6.1 | 75 | 126 | 70 | 30 | 147 | 28 | 202 |
| M42 | 7 | 85 | 144 | 80 | 35 | 147 | 32 | 311 |
| M45 | 8 | 85 | 144 | 80 | 35 | 168 | 32 | 304 |
| M48 | 8.6 | 100 | 166 | 90 | 40 | 168 | 38 | 502 |
| M52 | 9.9 | 100 | 166 | 90 | 40 | 187 | 38 | 495 |
| M56 | 11.5 | 110 | 184 | 100 | 45 | 187 | 42 | 669 |
| M64 | 16 | 120 | 206 | 110 | 50 | 208 | 48 | 930 |
| M72 | 21 | 150 | 260 | 140 | 60 | 260 | 60 | 1875 |
| M80 | 28 | 170 | 296 | 160 | 70 | 298 | 68 | 2730 |
| M88 | 38 | 190 | 330 | 180 | 75 | 330 | 75 | 3640 |
Packing & Delivery
Company Profile
Huixing Industry (Qingdao) Co.,Ltd, established in 2000, is a professional factory for forging and casting. Our company is located in Environmental Protection Industrial Park, Jimo,Qingdao.
Our company's main products: eye bolts, eye nuts, rigging hardware, pole line hardware, forgings, castings. Products are sold to more than 20 countries and regions around the world.
Huixing provides high-quality products and perfect services to customers around the world.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20years experience. We assure the competitive price and quality for you.
Q: Can you offer me sample?
A: Yes, we can offer you sample to test and check quality.
Q: How do we ensure quality?
A: Always pre-production samples prior to batch production. Always final inspection prior to shipment.
Q: When can I get the price?
A: We usually offer you a quotation within 12 hours, and the special offer is not more than 24 hours.Any urgent cases, please contact us directly by phone or send email to us.
Q: Can I get discounts?
A: Yes, for big order, frequent customers, we give reasonable discounts.
