Product Details:
|
| Product Name: | Carbon Steel Power Coated G80 D Ring With Wrap | Material: | Alloy Steel Or Carbon Steel |
|---|---|---|---|
| Surface: | Power Coated | Size: | 13mm-21mm |
| Packing: | Cartong + Pallet | WLL: | 1T-5T |
| High Light: | Carbon Steel Forged D Ring,Forged D Ring 21mm,weld in d rings With Wrap |
||

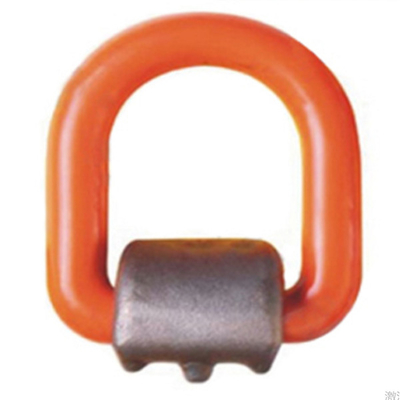

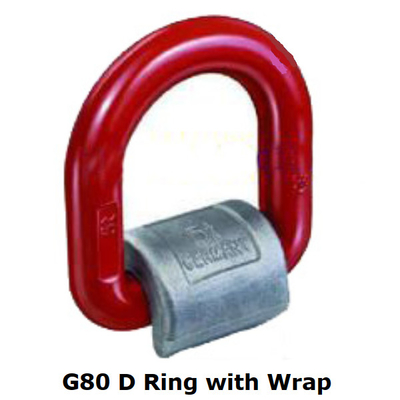

G80 D ring with wrap is made by high quality alloy steel with power coated on the surface. All the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. And Special specification and marks can be made according to customers requirement.
Product Details:
1. Item: G80 D ring with wrap
2. Grade: G80
3. Material: Alloy steel or carbon steel
4. Technology: Drop forged
5. Surface: Power coated
6. WLL: 1T-5T
7. Usage: Lifting accessories
8. Size: 13mm-21mm
9. Special specifications and marks can be made according to customers requirement
Specification:
| WLL(T) | Weight(kg) | B.L(T) | A(mm) | B(mm) | Φ(mm) | L(mm) |
| 1 | 0.39 | 4 | 41 | 39 | 13 | 84 |
| 2 | 0.44 | 8 | 42.5 | 40 | 14 | 86 |
| 3 | 0.67 | 12 | 45 | 47 | 17 | 100 |
| 5 | 1.15 | 20 | 55 | 57 | 21 | 126 |
Packing & Delivery
