Product Details:
|

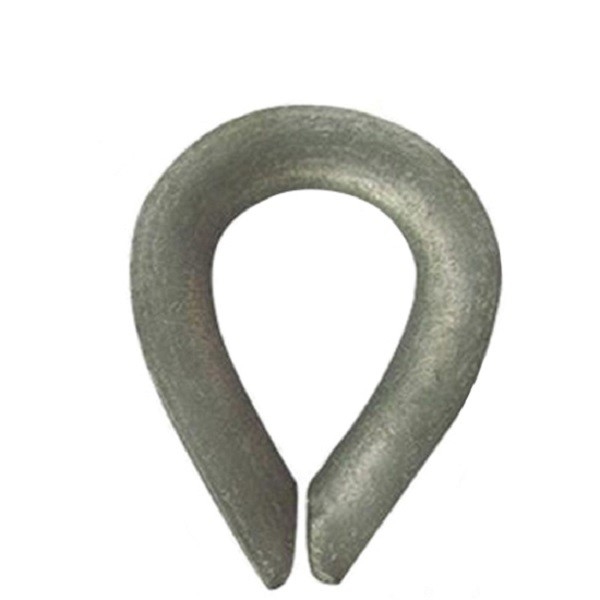

| Product Name: | Galvanized High Quality Heavy Duty Thimble DIN 3090 | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Galvanized, Hot Dipped Galvanized | Size: | M4-M40 |
| Usage: | Wire Rope Fittings, Chain Fittings, Marine Hardware Fittings | Packing: | Cartong + Pallet |
| High Light: | Galvanized CE Wire Rope Thimble,Wire Rope Thimble OEM,galvanized thimble DIN 3090 |
||
High quality heavy duty thimble DIN 3090 is essential for rigging systems. Our company has produced this product for several years and we also co-operate with other excellent company. Various size is available and the price is competitive. If you are interested in this priduct, please do not hesitate to contact with us.
Details:
1. Model: High Quality Heavy Duty Thimble DIN 3090
2. Material: Stainless steel, carbon steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size-C | A(mm) | B(mm) | K(mm) |
| 4-5 | 10 | 29 | 2 |
| 6-7 | 15 | 42 | 2.6 |
| 8-9 | 20 | 56 | 4 |
| 10-11 | 25 | 70 | 5 |
| 12-13 | 30 | 85 | 6 |
| 14-16 | 35 | 102 | 8 |
| 16-18 | 40 | 113 | 8 |
| 18-20 | 45 | 127 | 9 |
| 20-22 | 50 | 141 | 10 |
| 22-24 | 55 | 153 | 10 |
| 24-26 | 60 | 165 | 10 |
| 26-29 | 65 | 181 | 12 |
| 28-31 | 70 | 193 | 12 |
| 32-35 | 80 | 223 | 13 |
| 36-40 | 90 | 247 | 13 |
