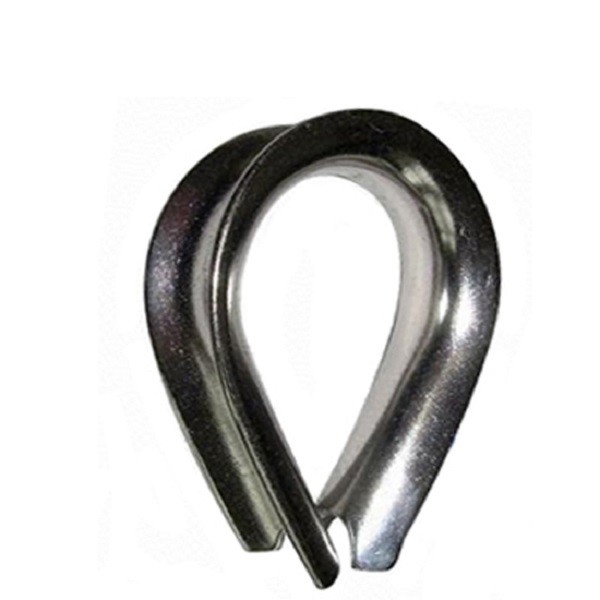

Stainless Steel G411 Wire Rope Thimble 1/8in

Stainless Steel G411 Wire Rope Thimble 1/8in
Stainless Steel G411 Wire Rope Thimble 1/8in
Stainless Steel G411 Wire Rope Thimble 1/8in Stainless Steel G411 Wire Rope Thimble 1/8in

Large Image :  Stainless Steel G411 Wire Rope Thimble 1/8in

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G411 Wire Rope Thimble
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Stainless Steel G411 Wire Rope Thimble 1/8in

Description
Product Name: Stainless Steel G411 Wire Rope Thimble Material: Stainless Steel
Surface: Polished Size: 1/8 - 1-1/4"
Usage: Wire Rope Fittings, Chain Fittings, Marine Hardware Fittings Packing: Cartong + Pallet
High Light:

Stainless Steel Wire Rope Thimble

,

Wire Rope Thimble 1/8in

,

g411 thimble SGS

Stainless Steel G411 Wire Rope Thimble

Our company is a professional wire rope thimble manufacturer, supplier and exporter in China. Various size is available. We are looking forward to being your business partner.

Details:

1. Model: G411 Wire Rope Thimble
2. Material: Stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Rope dia Dimensions(in) Weight 100PCS(LBS)
in A B C D E F G H
1/8 1.94 1.31 1.06 0.69 0.25 0.16 0.05 0.13 2.50
3/16 1.94 1.31 1.06 0.69 0.31 0.22 0.05 0.13 2.50
1/4 1.94 1.31 1.06 0.69 0.38 0.28 0.05 0.13 3.75
5/16 2.13 1.50 1.25 0.81 0.44 0.34 0.05 0.13 3.75
3/8 2.38 1.63 1.47 0.94 0.53 0.41 0.06 0.16 6.25
1/2 2.75 1.88 1.75 1.13 0.69 0.53 0.08 0.19 12.50
5/8 3.50 2.50 2.38 1.38 0.91 0.66 0.13 0.34 25.00
3/4 3.75 2.50 2.69 1.63 1.08 0.78 0.14 0.34 50.00
7/8 5.00 3.50 3.19 1.88 1.27 0.94 0.16 0.44 85.00
1 5.69 4.25 3.75 2.50 1.39 1.06 0.16 0.41 100.00
1-1/8-1-1/4 6.25 4.25 4.31 2.75 1.75 1.31 0.22 0.50 175.00



Stainless Steel G411 Wire Rope Thimble 1/8in 0

Stainless Steel G411 Wire Rope Thimble 1/8in 1



Packing & Delivery

Stainless Steel G411 Wire Rope Thimble 1/8in 2

Stainless Steel G411 Wire Rope Thimble 1/8in 3







Tag:

Wire Rope Thimble 1/8in,

Wire Rope Thimble M4,

heavy duty thimble M32
