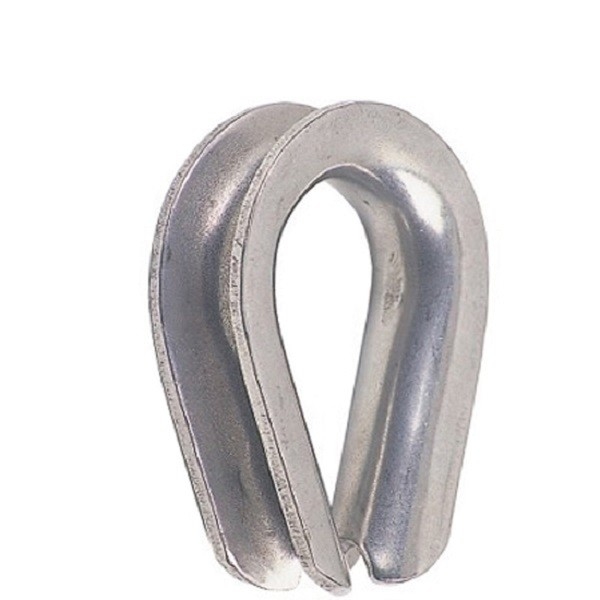

Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch

Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch
Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch
Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch

Large Image :  Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Extra Heavy Wire Rope Thimbles
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch

Description
Product Name: Galvanized Extra Heavy Wire Rope Thimbles Material: Carbon Steel
Surface: Galvanized Size: From 1/4 Inch To 1 Inch
Usage: Wire Rope Fittings, Chain Fittings, Marine Hardware Fittings Packing: Cartong + Pallet
High Light:

Wire Rope Thimble 1/4in

,

Wire Rope Thimble 1in

,

heavy duty thimble ISO

Galvanized Extra Heavy Wire Rope Thimbles

Extra heavy wire rope thimbles are important for marine riggings. Our company has produced this product for many years and it is available in sizes ranging from 1/4 inch to 1 inch. The price is also very competitive. Welcome to contact with us.

Details:

1. Model: Extra Heavy Wire Rope Thimble
2. Material: Carbon steel, stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 1/4 inch to 1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

For rope diam. inches Diamensions in inches Weight pounds per 100
Overall length Overall width Length inside Width inside Overall thickness Max.pin diam.
1/4 2-3/16 1-1/2 1-5/8 7/8 13/32 13/16 7.5
5/16 2-1/2 2-13/16 1-7/8 1-1/16 1/2 15/16 14
3/8 2-7/8 2-1/8 2-1/8 1-1/8 21/32 1-1/16 25
1/2 3-5/8 2-3/4 2-3/4 1-1/2 27/32 1-7/16 51
5/8 4-1/4 3-1/8 3-1/4 1-3/4 1 1-5/8 75
3/4 5 3-3/16 3-3/4 2 1-1/4 1-7/8 147
1 6-1/8 4-15/16 4-1/2 2-1/2 1-9/16 2-3/8 291.66



Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch 0



Packing & Delivery

Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch 1

Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch 2
