Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: BS
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

British Forged Master Link Welded Link Chain

Description
Product Name: Galvanized British Standard Welded Link Chain Material: Carbon Steel
Surface: Galvanized Type: Short Link, Medium Link And Long Link
Application: Suitable For All General Purposes Packing: Drums, Reels, Bags, Hanks
High Light:

British Forged Master Link

,

5/32IN Forged Master Link

,

welded link chain ISO9001

Galvanized British Standard Welded Link Chain

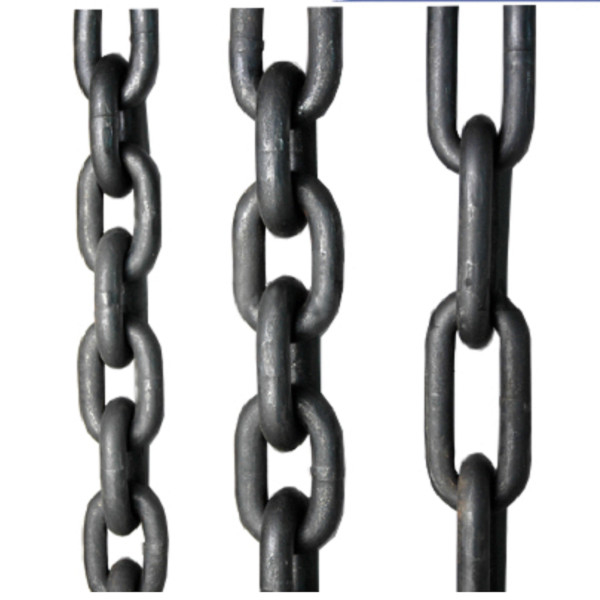

The British standard welded link chain is a sort of mild steel welded link chain manufactured to meet British Standard. There are three types of the chain: short link, medium link and long link. The short link chains with load ratings of 80 and 100 are suitable used for overhead lifting. The British standard link chain is suitable for all general purposes, such as engineering, industrial, agricultural and marine applications. The chain is in a variety of protective finishes and packages. Besides, we provide a wide range of material diameter, from 3.2 mm to 25.4 mm.

Besides the British standard welded link chain, we are able to provide American standard welded link chain, DIN standard welded link chain, Chinese standard welded link chain...

If you are interested in our chains, please contact us. We are capable of customizing products in line with your specific requirements.



Features of British Standard Welded Link Chain

• Type: short link, medium link and long link

• Standard: BS

• Finish: galvanized

• Package: drums, reels, bags, hanks...

• Application: suitable for all general purposes



Specifications of British Standard Welded Short Link Chain

Material Diameter Internal Length Outside Width Test Load Breaking Load

Weight per 200 Feet

kg

in mm mm mm kg kg B.F. H.D.G
1/8 3.20 16 12 200 400 11.4 11.74
5/32 4.00 18.5 14.5 300 600 18.6 19.00
3/16 4.70 19 17 400 800 26.2 27.00
7/32 5.50 20 19 550 1100 36.8 38.00
1/4 6.35 22 21 750 1500 50.0 51.50
5/16 7.94 26.5 27.2 1200 2400 80.0 82.40
3/8 9.50 30 32 1700 3400 122.0 125.70
7/16 11.11 34 36 2300 4600 164.0 169.00
1/2 12.70 39 43 3000 6000 210.0 216.00
5/8 15.80 45 53 4700 9400 334.0 344.00
3/4 19.00 55 63 6800 13600 485.0 499.00
7/8 22.20 64 74 9250 18500 656.0 675.00
1 25.40 73 84 12150 24300 870.0 896.00



Specifications of British Standard Welded Medium Link Chain

Material Diameter Internal Length Outside Width Test Load Breaking Load

Weight per 200 Feet

kg

in mm mm mm kg kg B.F. H.D.G
1/8 3.20 20 12 200 400 10.80 11.00
5/32 4.00 23 15 300 600 17.40 18.00
3/16 4.70 25 18 400 800 24.40 25.00
7/32 5.50 26 19 550 1100 34.00 35.00
1/4 6.35 26 23 750 1500 48.80 50.00
5/16 7.94 32 29 1200 2400 76.00 78.00
3/8 9.50 35 35 1700 3400 111.00 114.00
7/16 11.11 38 38 2300 4600 154.00 158.00
1/2 12.70 50 45.5 3000 6000 194.00 200.00
5/8 15.80 60 56.7 4700 9400 303.00 312.00
3/4 19.00 76 69 6800 13600 432.00 445.00
7/8 22.20 90 80 9250 18500 586.00 603.00
1 25.40 105 95 12150 24300 770.00 792.00



Specifications of British Standard Welded Long Link Chain

Material Diameter Internal Length Outside Width Test Load Breaking Load

Weight per 200 Feet

kg

in mm mm mm kg kg B.F. H.D.G
1/8 3.20 23 12 200 400 10.40 10.70
5/32 4.00 27 15 300 600 16.60 17.50
3/16 4.70 31 17 400 800 22.40 23.30
7/32 5.50 32 19 550 1100 32.00 33.00
1/4 6.35 33 21 750 1500 43.50 44.80
5/16 7.94 48 31 1200 2400 68.00 70.00
3/8 9.50 60 37 1700 3400 96.00 99.00
7/16 11.11 71 41 2300 4600 126.00 129.00
1/2 12.70 85 48.5 3000 6000 167.00 172.00
5/8 15.80 114 61.5 4700 9400 256.00 264.00
3/4 19.00 125 75 6800 13600 381.00 392.00
7/8 22.20 140 88 9250 18500 527.00 543.00
1 25.40 155 100 12150 24300 696.00 716.00





Pictures of British Standard Welded Link Chain

British Forged Master Link Welded Link Chain 0British Forged Master Link Welded Link Chain 1British Forged Master Link Welded Link Chain 2



Packing & Delivery

British Forged Master Link Welded Link Chain 3

British Forged Master Link Welded Link Chain 4
