Electric Hook To Hook Turn Buckle DIN 1480

Electric Hook To Hook Turn Buckle DIN 1480
Electric Hook To Hook Turn Buckle DIN 1480
Electric Hook To Hook Turn Buckle DIN 1480 Electric Hook To Hook Turn Buckle DIN 1480

Large Image :  Electric Hook To Hook Turn Buckle DIN 1480

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN 1480
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Electric Hook To Hook Turn Buckle DIN 1480

Description
Product Name: Electric Galvanized DIN 1480 Turnbuckle With Hook And Hook Material: Carbon Steel
Surface: Electric Galvanized Size: M5-M25
Type: Hook&hook Packing: Cartong + Pallet
High Light:

Electric Turn Buckle

,

Turn Buckle M25

,

hook to hook turnbuckle DIN 1480

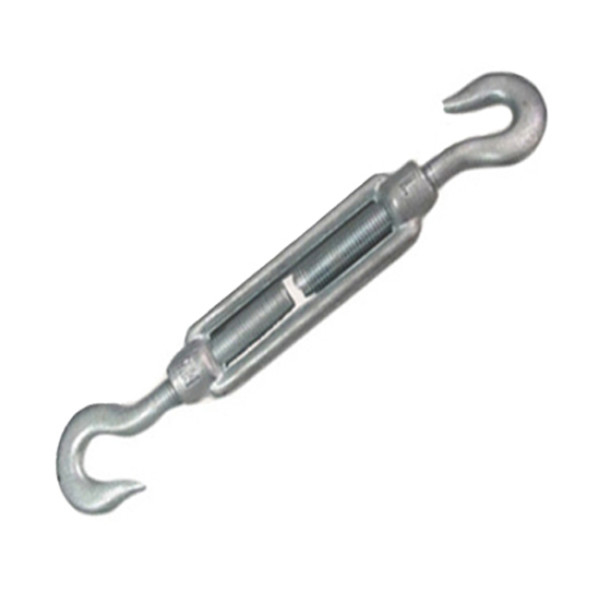

Electric Galvanized DIN 1480 Turnbuckle with Hook and Hook

This product is made by high quality C15 steel with drop forged process. It can resists pitting and corrosion by most chemical, and is particular resistant to saltwater corrosion. And its hook and hook type can be used in the occasion of been removed often. So, it can be widely used in large construction site, large factory, shipping and bridge constraction because of its special performance and appearance.

product details:

1. Model NO.:DIN 1480

2. Material:C15

3. Type:Hook & Hook

4. Usage:Marine Industry

5. Installation:External

6. Condition:New

7. Surface:Electric Galvanized

8. Technology:Drop Forged

9. Size:M5-M25

10. Export Markets:Global

11. Packing:Carton with Pallet

12. Standard:ISO, CE, SGS

Specification:

A B C D WLL WT
(mm) (mm) (mm) (mm) (T) (Kg)
M5 70 130 9 0.1 0.08
M6 100 160 9 0.25 0.11
M8 125 200 10 0.35 0.21
M10 150 245 11 0.5 0.34
M12 200 300 14 1 0.65
M16 250 400 18 1.5 1.3
M20 300 480 20 2.3 2.5
M10 325 520 22 3.2 3.93
M25 350 560 26 4.5 5.89



Electric Hook To Hook Turn Buckle DIN 1480 0Electric Hook To Hook Turn Buckle DIN 1480 1



Packing & Delivery

Electric Hook To Hook Turn Buckle DIN 1480 2

Electric Hook To Hook Turn Buckle DIN 1480 3
