G80 Forged Master Link Omega Clevis Link

G80 Forged Master Link Omega Clevis Link
G80 Forged Master Link Omega Clevis Link
G80 Forged Master Link Omega Clevis Link G80 Forged Master Link Omega Clevis Link

Large Image :  G80 Forged Master Link Omega Clevis Link

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G80
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

G80 Forged Master Link Omega Clevis Link

Description
Product Name: Drop Forged Color Painted G80 Low Height Clevis Omega Link Material: Forged Alloy Steel
Surface: Hot Dip Galvanized, Color Painted Size: 9.5mm-13mm
Packing: Cartong + Pallet WLL: 2T-3.15T
High Light:

G80 Forged Master Link 2T

,

Forged Master Link 3.15T

,

Omega clevis link

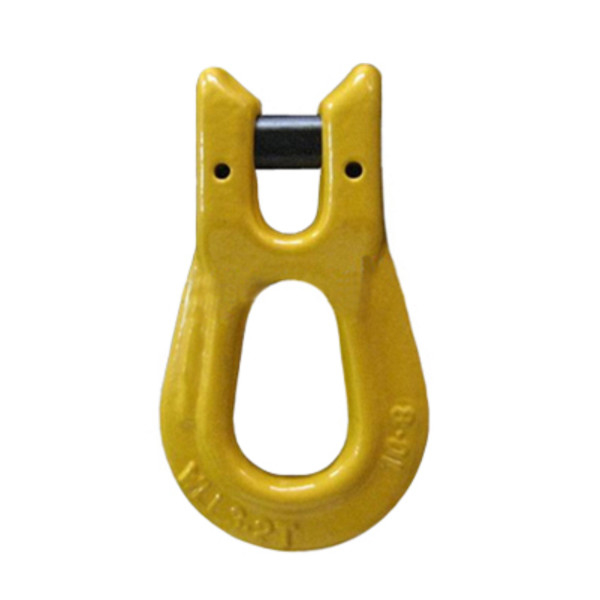

Drop Forged Color Painted G80 Low Height Clevis Omega Link

G80 low height clevis omega link is made bu high quality alloy steel. The working load limited of it is from 2 ton to 3.15 ton. And its size is from 9.5mm to13mm. It has the advantages of small volume, light weight and high strength. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: G80 low height clevis omega link

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 2T-3.15T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 9.5mm-13mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T) Weight(kg) B.L(T) A(mm) B(mm) D(mm) H(mm) K(mm) L(mm)
2 0.22 8 9.5 33 27 45 69 102
3.15 0.45 12.6 13 45.5 27 45 72 116



G80 Forged Master Link Omega Clevis Link 0

G80 Forged Master Link Omega Clevis Link 1



Packing & Delivery



G80 Forged Master Link Omega Clevis Link 2

G80 Forged Master Link Omega Clevis Link 3
