Product Details:
|

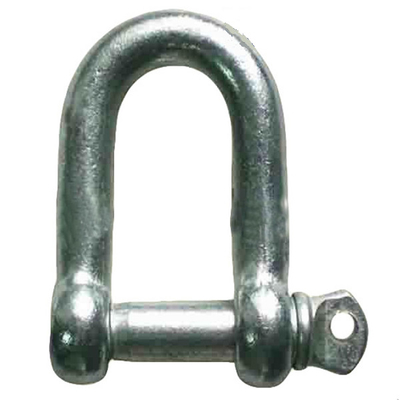

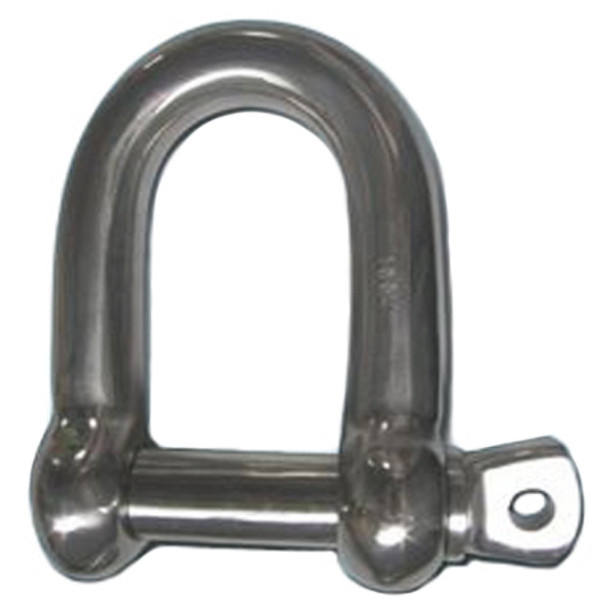

Product Name: | Electric Galvanized European Type Dee Shackle | Material: | Forged Steel |
---|---|---|---|
Surface: | Electric Galvanized, Hot Dipped Galvanized, Self-colored | Size: | M5 - M50 |
Packing: | Cartong + Pallet | WLL: | 5- 50 Tons |
High Light: | Electric Screw Pin Anchor Shackle,Screw Pin Anchor Shackle ISO9001,screw pin dee shackle ISO9001 |
European type dee shackles are widely used in rigging systems. Our company has produced this product for many years and we also co-operate with other excellent factories, so the price is very competitive. In addition, our professional sales team will provide you with the best service. We are looking forward to making business relationship with you.
Details:
1. Type: European type
2. Material: Carbon steel, Alloy steel
3. Usage: Marine hardware
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
SWL | D | d | a | c | b | Weight per 100 pce |
kg | mm | mm | mm | mm | mm | kg |
5 | 5 | 10 | 10 | 19 | 11 | 1.9 |
6 | 6 | 13 | 13 | 25 | 14 | 3.4 |
8 | 8 | 16 | 16 | 32 | 18 | 7 |
10 | 10 | 19 | 19 | 38 | 20 | 13 |
12 | 12 | 25 | 25 | 51 | 26 | 24 |
16 | 16 | 32 | 32 | 64 | 33 | 50 |
20 | 20 | 38 | 38 | 76 | 40 | 80 |
22 | 22 | 44 | 44 | 89 | 50 | 130 |
25 | 25 | 51 | 51 | 100 | 57 | 200 |
28 | 28 | 57 | 57 | 115 | 68 | 300 |
32 | 32 | 64 | 64 | 127 | 73 | 430 |
38 | 38 | 76 | 76 | 152 | 85 | 675 |
45 | 45 | 90 | 90 | 180 | 96 | 1250 |
50 | 50 | 102 | 102 | 200 | 108 | 1750 |
