Trawling Screw Pin Anchor Shackle With Square

Trawling Screw Pin Anchor Shackle With Square
Trawling Screw Pin Anchor Shackle With Square
Trawling Screw Pin Anchor Shackle With Square Trawling Screw Pin Anchor Shackle With Square Trawling Screw Pin Anchor Shackle With Square

Large Image :  Trawling Screw Pin Anchor Shackle With Square

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Trawling Shackle
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

Trawling Screw Pin Anchor Shackle With Square

Description
Product Name: Forged Steel Trawling Shackle With Square Head Pin Material: Forged Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Self-colored Size: M13 - M51
Packing: Cartong + Pallet WLL: 2- 35 Tons
High Light:

M13 Screw Pin Anchor Shackle

,

M51 Screw Pin Anchor Shackle

,

trawling shackle With Square

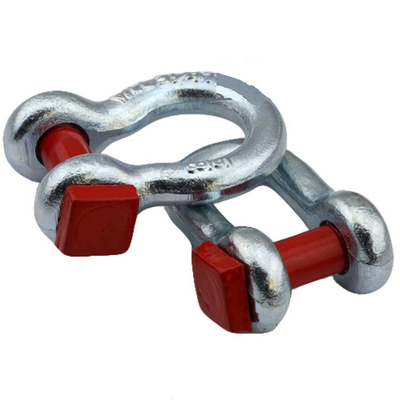

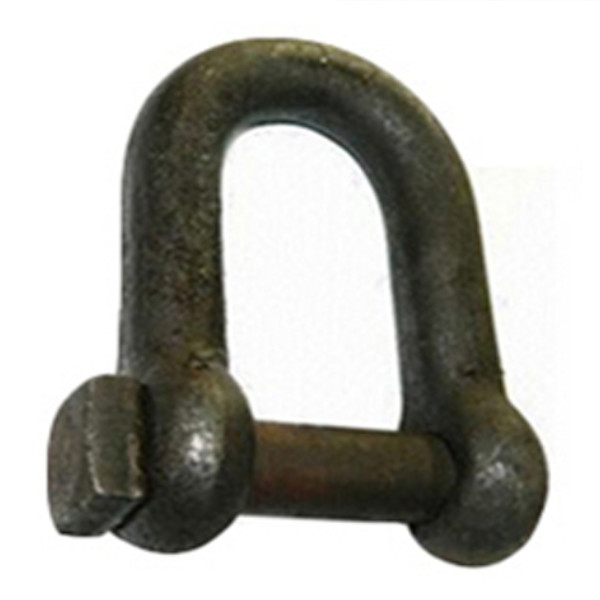

Forged Steel Trawling Shackle with Square Head Pin

Forged steel trawling shackle with square head pin is one of our company's important products. All sizes are available. The price is very competitive. Welcome to get in touch with us.

Details:

1. Model: Trawling shackle with square head pin
2. Material: Forged steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, self-colored
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Size Dimensions(mm) W.L.L. Weight
mm A B C D tons kgs
13 13 15.7 22 43.7 2.00 0.35
16 16 19 27 51.5 3.25 0.61
19 19 21.7 31 59.7 4.75 0.95
22 22 24.7 36 74.2 6.50 1.35
25 25 27.7 43 86.2 8.50 2.00
29 29 32 47 90 9.50 3.08
32 32 35 51 94 12.00 4.34
35 35 38 57 115 13.50 5.69
38 38 42 60 127 17.00 7.10
44 44 51 74 149 25.00 12.15
51 51 57 83 171 35.00 17.28



Trawling Screw Pin Anchor Shackle With Square 0

Trawling Screw Pin Anchor Shackle With Square 1Trawling Screw Pin Anchor Shackle With Square 2



Packing & Delivery



Trawling Screw Pin Anchor Shackle With Square 3

Trawling Screw Pin Anchor Shackle With Square 4
