M5 Screw Pin Anchor Shackle Din 82101 Shackle

M5 Screw Pin Anchor Shackle Din 82101 Shackle
M5 Screw Pin Anchor Shackle Din 82101 Shackle
M5 Screw Pin Anchor Shackle Din 82101 Shackle M5 Screw Pin Anchor Shackle Din 82101 Shackle

Large Image :  M5 Screw Pin Anchor Shackle Din 82101 Shackle

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN82101
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

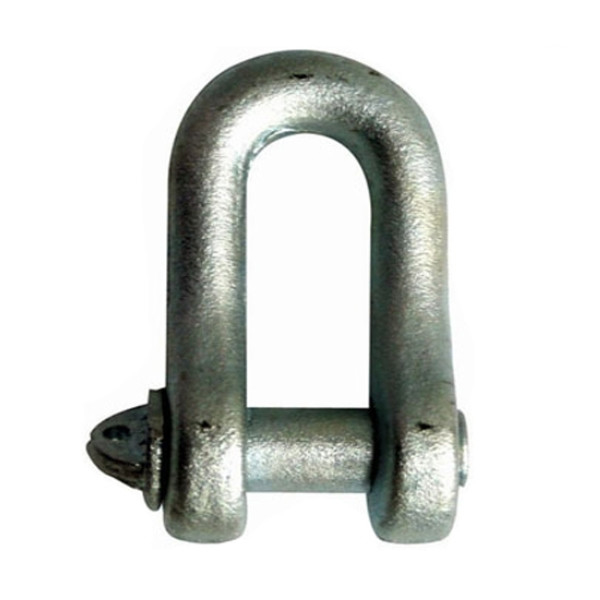

M5 Screw Pin Anchor Shackle Din 82101 Shackle

Description
Product Name: Galvanized DIN82101 Shackles Material: High Carbon Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Self-colored Size: M5 - M39
Packing: Cartong + Pallet WLL: 0.1- 6 Tons
High Light:

DIN82101 Screw Pin Anchor Shackle

,

M39 Screw Pin Anchor Shackle

,

din 82101 shackle

Galvanized DIN82101 Shackles

DIN82101 shackles are neccessary for marine equipment. Our company has stimulated lots of experiences in producing this product. And we also have a professional sales team and they can offer you the best service. We are looking forward to cooperating with you.

Details:

1. Model: DIN82101 Shackle
2. Material: High carbon steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, drop forged
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Size W.L.L Body dia I.L. N.W.
mm ton mm mm kg
5 0.1 4 18 0.013
6 0.16 5 21 0.024
8 0.25 7 28 0.045
10 0.4 8 35 0.09
12 0.6 10 42 0.17
16 1 13 57 0.36
20 1.6 17 71 0.75
22 2 19 78 1
24 2.5 21 85 1.32
27 3 24 97 1.85
30 4 27 106 2.5
36 5 30 129 4
39 6 34 139 5.4
